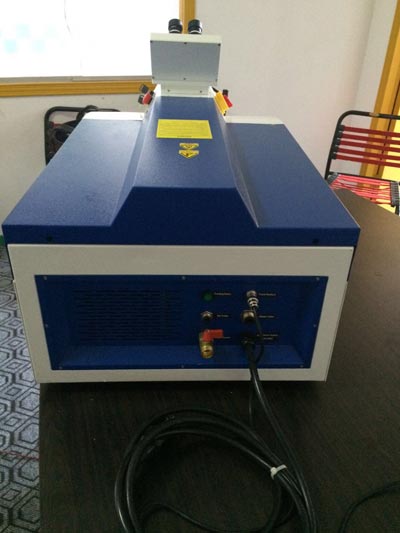

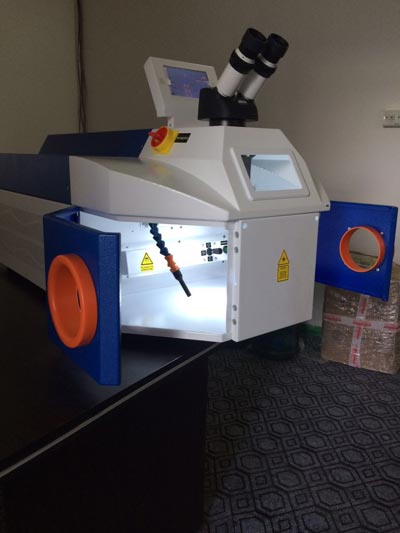

laser welder Desktop spot
Description:
-
Desktop laser spot welding machine, also known as small laser spot welding machine, one cooled laser welding machine, laser machine, laser jewelry machine, laser spot welding accessories, portable laser welding machine, laser spot welding jewelry, denture laser spot welding machine and so on
-
1, a key operation: a key switch, simplify the startup process of equipment, convenient for the operator to use cumbersome process.
2 MCU control: can store 50 groups of commonly used welding parameters, easy to use again.
3, small volume and light weight: reduced working space, convenient for transportation and handling.
Feature:
Model |
CL-DSW60 |
CL-DSW100 |
|---|---|---|
Laser type |
Nd:YAG Pulsed |
Nd:YAG Pulsed |
Max.Average power |
60W |
100W |
Max.pulse energy |
60J |
90J |
Peak power |
4KW |
5KW |
Pulse duration |
0.3-8ms |
0.2-10ms |
Pulse frequency |
10Hz Max |
15Hz Max |
Focal diameter |
0.2-2.0mm |
|
Cooling system |
Internal water to air heat exchanger |
|
Vision system |
Stereo Microscope 10X |
|
Power supply |
AC220V,50 or 60Hz single phase,16amp |
|
Net weight |
60kg |
65kg |
Dimensions |
L:900mm,W:500mm,H:560mm |
|
| www.cncoletech.com | ||
Application:
Used in jewelry patching holes, sand holes, welding seam pattern and embedded parts repair parts welding claw. Can also be used for denture fill sand hole and micro precision parts such as battery, nickel belt, integrated circuit lead, hairsprings, picture tube, electron gun assembly and field welding. Small welding heat affected zone; welding spot size can be adjusted freely; solder joint fine, smooth, beautiful, no need of welding processing; precise positioning; welding speed, high quality, solder joints with and without pollution, high efficiency and environmental protection. For gold and silver, Bo Jin, stainless steel, titanium and other metal and alloy.
