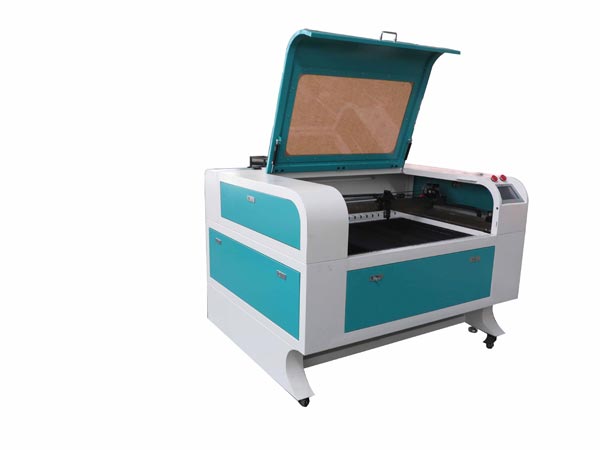

CL- 690
Feature:
- Adopt the aviation light path system ,imported linear guide rail , guarantee the smoothness of the light knife moving and high engraving precision .
- Realize computer drawing (effect drawing) , make all kinds of drawings , characters , graphics context , plenty and normative , cooperate with laser engraving software and make the effect of graphics context perfectly .
- Large processing area , high speed , high precision , smooth cutting edges , narrow cutting slot , easy working procedure , and easy to operate .

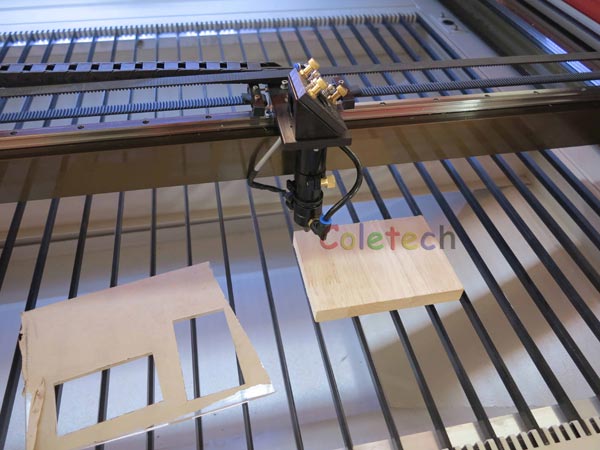

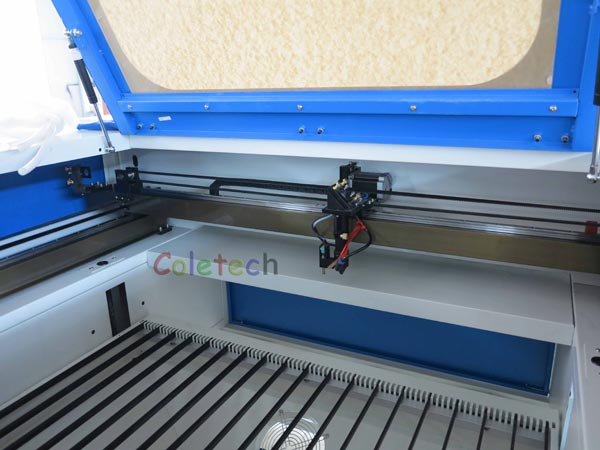

- The laser machine adopts imported motor , red light positioning function , private patent inside structure . It's compact , layout reasonable , performance stable , and can continuous working for a long time ; Adopt imported linear guide rail , the light knife moving along with X,Y axis horizontally non touching , no mechanical distortion , perfect engraving effect , adopt CO2 sealed laser tube as the heat sources of the machine , integrate the most advanced computer digital control technique , it's a high-tech digital control product unified optical , mechanism and electricity .
Model |
CL-690 |
CL-1490 |
CL-1612 |
|---|---|---|---|
Worktable |
alumium plate (auto focus, knife worktable, honeycomb is optional) |
||
Effective Working Area |
600mm×900mm×220mm |
1400mm×900mm×220mm |
1600mm×1200mm×220mm |
laser power |
60W/80W |
80W/100W/130W |
80W/100W/130W/150W |
Cutting thickness |
15 mm (Depends on different materials) |
||
Power supply: |
AC220±10%50 HZ/AC110±10%50 HZ |
||
Max moving speed: |
40,000 mm/min |
||
Laser energy control: |
1-100% set by hand or software |
||
Locating precision: |
<0.01 mm |
||
Min shaping character: |
Character: 2×2 mm,; letter:1×1 mm |
||
Operating temperature: |
5°C-35°C |
||
Data transfer interface |
USB /Udisk/Ethernet |
||
System environment: |
WINDOWS 2000/ XP/Vista/Win7/Win8 |
||
Cooling way: |
Water cooling and protection system |
||
Graphic format supported: |
The file which CorelDraw、AutoCad、CaDian,Illustrator, EngraveLab and laserwork can identify |
||
Memory |
256 MB |
||
Color Separation |
Separation of cutting up to 256 colors |
||
Sloping Engraving |
Yes,slop can be designed discretionarily |
||
Package Inclusion |
equipment, focus ruler, Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water pump,Water Pipe,Smoke Vent-pipe,Air Blow Pipe, Tools bag |
||
machine color |
customize for you |
||
Dimensions |
1200*1500*1075mm |
1800*1500*1075mm |
2190×1900×1080mm |
Dimensions(package) |
1320*1650*1290 mm |
1920*1650*1290 mm |
2290×2000×1290mm |
Net /Gross Weight |
360/500kg2 |
360/500kgs |
520/650kgs |
warranty |
2 years ,consumable items : laser tube,lens and mirrors 3 months |
||
| www.cncoletech.com | |||
Applicable materials:
Wood ware, paper , leather , cloth, acrylic , epoxy resin，density board, double-colored board, marble, plastic, rubber, textile, crystal, onyx, bamboo and other non-metal materials .Application industries:
- Packing & printing: paper carton, knitting bag, handle bag, rubber board for printing .
- Advertisement: acrylic cutting, labelmaking, double-colored board engraving.
- Art and craft: wood, bamboo, photo, ornament, prize’s engraving .
- Leather & garment: leather, man-made leather, garment embroidery and sampling.
- Others: sample, marking, model-making, surface drawing decoration, etc.
