FEATURES :

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
CW-6100AH: applied to cool two 200W CO2 glass laser tubes or a 400W CO2 glass laser tubes;
CW-6100AI : applied to cool a single 150W RF laser tube;
CW-6100AN: applied to cool a single 150W laser diode, a single 150W solid-state laser, a single 300W-600W fiber lasers or a single 36KW CNC spindle.
CW-6102 : double water inlets and outlets series (optional); Heat booster (optional).

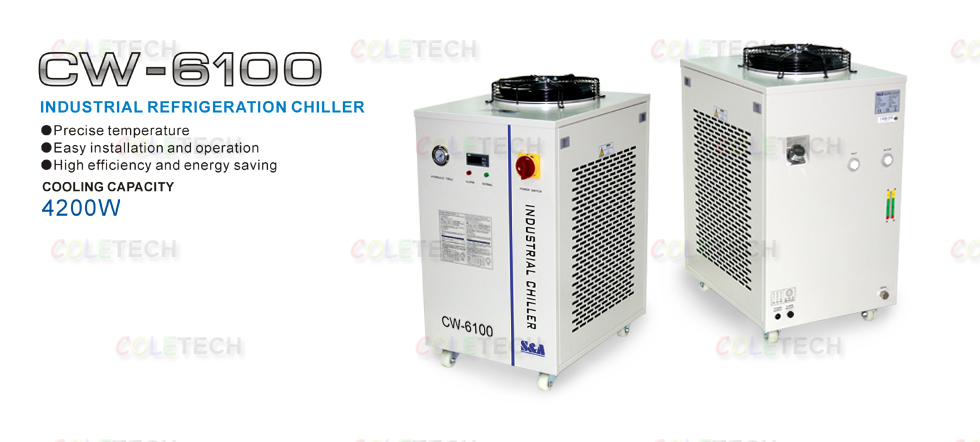

Model CW-6100AH CW-6100BH CW-6100DH CW-6100AI CW-6100BI CW-6100DI CW-6100AN CW-6100BN CW-6100DN
Voltage AC220~240V AC208~230V AC100~110V AC220~240V AC208~230V AC100~110V AC220~240V AC208~230V AC100~110V
Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz
Current 1~6.5A 1~6.2A 1~11A 1.5~7A 1.5~6.7A 1.5~11.5A 2~7.5A 2~7.2A 2~12A
Compressor power 1.38KW 1.29KW 1.135KW 1.38KW 1.29KW 1.135KW 1.38KW 1.29KW 1.135KW
1.84HP 1.72HP 1.54HP 1.84HP 1.72HP 1.54HP 1.84HP 1.72HP 1.54HP

Refrigerating capacity

 14483Btu/h 14092Btu/h 11533Btu/h 14483Btu/h 14092Btu/h 11533Btu/h 14483Btu/h 9502Btu/h 11533Btu/h
4.24KW 4.13KW 3.38KW 4.24KW 4.13KW 3.38KW 4.24KW 4.13KW 3.38KW
3650Kcal/h 3551Kcal/h 2907Kcal/h 3650Kcal/h 3551Kcal/h 2907Kcal/h 3650Kcal/h 3551Kcal/h 2907Kcal/h
Refrigerant R-22/R-410a
Refrigerant charge 950g 900g 900g 950g 900g 900g 950g 900g 900g
Precision Capillary
Reducer ±0.3℃
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.05KW 0.1KW 0.55 KW
Tank capacity 15 L
Inlet and outlet Inner teeth DN20
Max. lift 12 M 25 M 28 M
Max. flow 13 L/min 16 L/min 58L/min
N.W 65 Kgs 77 Kgs
G.W 75 Kgs 87 Kgs
Dimension 60 X 47 X 89 cm (L x W x H)
Package dimension 74X 60 X 109 cm (L x W x H)
