CL-6040
Feature:
-
*Versatile machine mainly designed for arts & crafts and gift industry.
*All-powerful laser machine for engraving, cutting, net point scanning and cylinder process
*High precision and high speed
*Red dot pointer;
*USB connectivity, off-line working;
*DSP control system;
*Super fine engraving technology which can engrave 1mm English letter and net point picture can reach the best effect at the same time of improving process effect.
*Enough space to process the material reaches 12cm height .
*Electronic control lift platform, easy and flexible to operate, can engrave materials with different height.
*It supports various file formats PLT, BMP (1bit), DXF, AI, etc which created by the drawing software and can carve various graphs and words.
*Automatic water cooling ;
*Auxiliary rotary device optional
Model |
CL-350 |
CL-460 |
|---|---|---|
Worktable |
alumium plate (auto focus, knife worktable, honeycomb is optional) |
|
Effective Working Area |
300mm×500mm×220mm |
400mm×600mm×220mm |
laser power |
50W/60W |
60W/80W |
Cutting thickness |
7 mm (Depends on different materials) |
10 mm (Depends on different materials) |
Applicable Materials |
Acrylic,Glass,crystal,wood,leather,cloth,rubber, bamboo |
|
Power supply: |
AC220±10%50 HZ/AC110±10%50 HZ |
|
Max moving speed: |
40,000 mm/min |
|
Laser energy control: |
1-100% set by hand or software |
|
Locating precision: |
<0.01 mm |
|
Min shaping character: |
Character: 2×2 mm,; letter:1×1 mm |
|
Operating temperature: |
5°C-35°C |
|
Data transfer interface |
USB /Udisk/Ethernet |
|
System environment: |
WINDOWS 2000/ XP/Vista/Win7/Win8 |
|
Cooling way: |
Water cooling and protection system |
|
Graphic format supported: |
The file which CorelDraw、AutoCad、CaDian,Illustrator, EngraveLab and laserwork can identify |
|
Memory |
256 MB |
|
Color Separation |
Separation of cutting up to 256 colors |
|
Sloping Engraving |
Yes,slop can be designed discretionarily |
|
Package Inclusion |
equipment, focus ruler, Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water pump,Water Pipe,Smoke Vent-pipe,Air Blow Pipe, Tools bag |
|
machine color |
customize for you |
|
Dimensions |
1020MM×650MM×590MM |
120×100×104CM |
Dimensions(package) |
1140×770×750MM |
132×122×129CM |
Net /Gross Weight |
65/104KGs |
260/350KGS |
warranty |

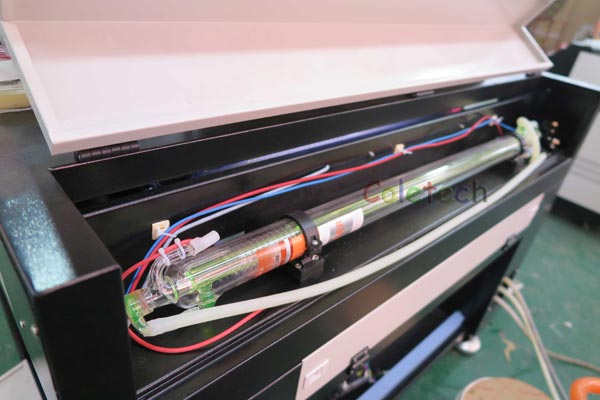

2 years ,consumable items : laser tube,lens and mirrors 3 months |
|
| www.cncoletech.com | ||
Applicable materials:
Wood ware, paper , leather , cloth, acrylic , epoxy resin，density board, double-colored board, marble, plastic, rubber, textile, crystal, onyx, bamboo and other non-metal materialsApplication industries:
- Packing & printing: paper carton, knitting bag, handle bag, rubber board for printing .
- Advertisement: acrylic cutting, labelmaking, double-colored board engraving.
- Art and craft: wood, bamboo, photo, ornament, prize’s engraving .
- Leather & garment: leather, man-made leather, garment embroidery and sampling.
- Others: sample, marking, model-making, surface drawing decoration, etc.
