FEATURES :

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
CW-6000AH: applied to cool three 100W CO2 glass laser tubes or four 80W CO2 glass laser tubes;
CW-6000AI : applied to a cool single 100W RF laser tube;
CW-6000AN: applied to a cool a single 100W solid-state laser, a single 30W-300W fiber lasers or a single 22KW CNC spindle;
CW-6002 : double water inlets and outlets series (optional); Heat booster (optional).

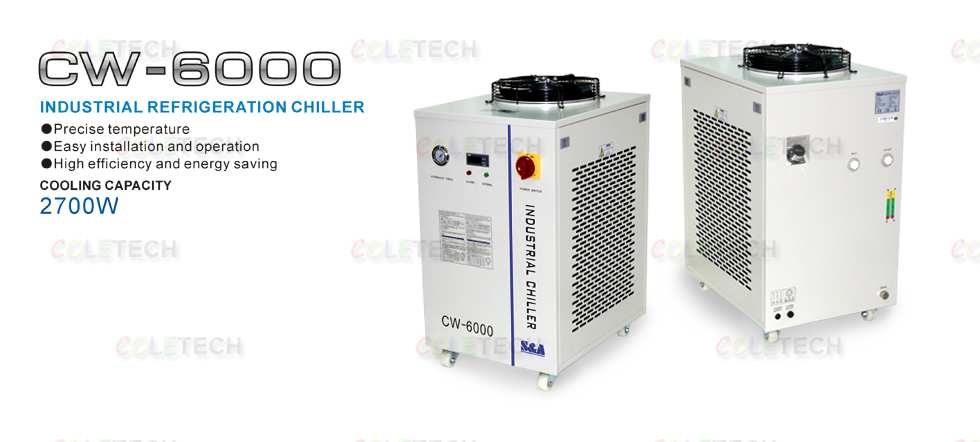

Model CW-6000AH CW-6000BH CW-6000DH CW-6000AI CW-6000BI CW-6000DI CW-6000AN CW-6000BN CW-6000DN
Voltage AC220~240V AC208~230V AC100~110V AC220~240V AC208~230V AC100~110V AC220~240V AC208~230V AC100~110V
Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz
Current 1~4.2A 1~6A 2~6A 2~8A 2~6A 2~8A
Compressor power 0.75KW 0.895KW 0.68KW 0.75KW 0.895KW 0.93HP 0.75KW 0.895KW 0.68KW
1.02HP 1.22HP 0.93HP 1.02HP 1.22HP 0.93HP 1.02HP 1.22HP 0.93HP

Refrigerating capacity

7711Btu/h 9502Btu/h 7271Btu/h 7711Btu/h 9502Btu/h 7271Btu/h 7711Btu/h 9502Btu/h 7271Btu/h
2.260KW 2.785KW 2.131KW 2.260KW 2.785KW 2.131KW 2.260KW 2.785KW 2.131KW
1944Kcal/h 2395Kcal/h 1833Kcal/h 1944Kcal/h 2395Kcal/h 1833Kcal/h 1944Kcal/h 2395Kcal/h 1833Kcal/h
Refrigerant R-22/R-410a
Refrigerant charge 650g 800g 650g 650g 800g 650g 650g 800g 650g
Precision Capillary
Reducer ±0.3℃
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.05KW 0.1KW 0.55 KW
Tank capacity 15 L
Inlet and outlet Rp1/2"
Max. lift 12 M 25 M 28 M
Max. flow 13 L/min 16 L/min 58L/min
N.W 59 Kgs 72 Kgs
G.W 69 Kgs 82 Kgs
Dimension 60 X 47 X 87 cm (L x W x H)
Package dimension 70 X 60 X 109 cm (L x W x H)
