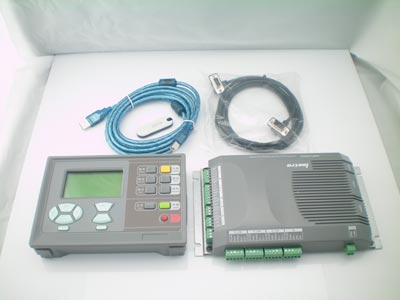

MPC6565
Introduce:
- MPC6565 is designed for the open-loop motion control system for the laser machine only. It is upgraded from MPC6535. Based on DSP and FPGA technology, the advanced velocity look-ahead and trajectory blending algorithm ensure the velocity invariableness and transition smoothness between any two-trajectory segments during the high speed X-Y continuous trajectory motion. And therefore the perfect smoothness and precision of the machining can be easily achieved.
Applications
- Over 10-year experience in CO2 (analog command) or RF (PWM command) tube compatible laser machine exclusively, open-loop motion control system：
Features
- ● Both servo and stepper motor supported
● Break-point resume
● Pulse frequency up to 2MHz
● Compatible for stepper motors or digital servo motors
● RS232 ModBus Protocol
● Data transferred by USB cable or USB flash drive
● 1-CH laser power on/off control output
● 1-CH laser PWM control output
● Up to 2-CH independent power analog output
● PWM preheat control
● Uncapping protection
● Flying-optics compensation
