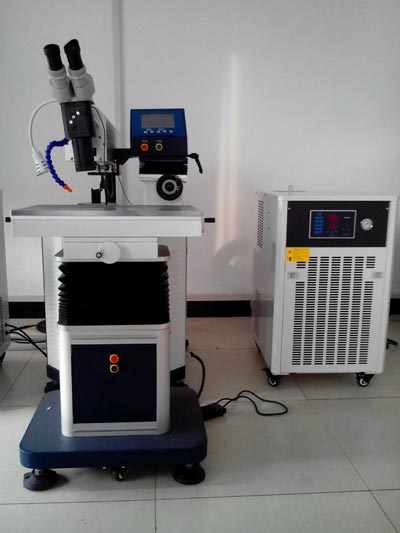

lase rmould welder



parameter

Model

CL-LMW150

CL-LMW200

CL-LMW300

Laser type

YAG pulsed

Max.output power

150W

200W

300W

Max.pulse energy

80J

100J

120J

Peak power

6KW

8KW

12KW

Pulse duration

0.3-20ms

Pulse frequency

0.1-30Hz

0.1-50Hz

0.1-100Hz

Focal diameter

0.1-2.0mm

0.1-2.0mm

0.2-2.0mm

Cooling system

External water cooling
Internal cooling system optional

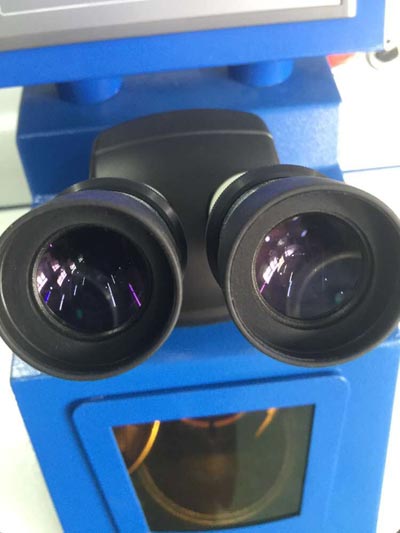

Vision system

10X Stereo microscope
CCD carmer+Display optional

Workbench

X axis travel distance:200mm
Y axis travel distance:150mm
Z axis motor drive travel distance:350mm
Loading ability:200kg
XYZ Motorized with joystick controller optional

Power supply

AC220V/1Ph/50Hz

AC220V/1Ph/50Hz

AC380V/3Ph/50Hz

Net weight

240kg

260kg

320kg

www.cncoletech.com

Application Material and industry:


Repair welding for the small and medium mould. Widely used in mobile phone, digital products, glasses, toys and other mold making and molding industry. Can repair welding of all kinds of mold steel, stainless steel, Brass Steel, precious metals and hard materials etc.. Precision injection molding, die casting, mold repair metal jewelry and accessories, precision stamping, welding, lost wax casting aluminum castings, stainless steel sand hole repair. Suitable for welding of various mold materials: S136, NAK80718738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082 and other countries die steel. After welding does not produce crack, sand hole, no scar, deformation, oxidation, suitable for mirror polishing, bite flower, etch, selection of appropriate welding material and the corresponding repair welding parameters can make the welding parts reached nearly HRC60 degree of hardness.
