COLE Technology CO,.LTD

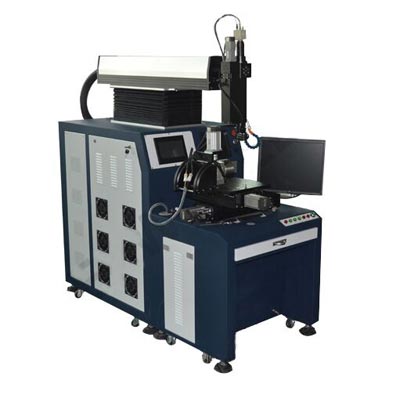

laser welder automatic

Feature:

parameter

Model

CL-ALW200

CL-ALW300

CL-ALW400

Laser wavelength

1064nm

Rated laser output power

200W

300W

400W

Adjusting range of light spot

0.1-3.0mm

Pulse width

≤20ms

Pulse frequency

≤50Hz

Sighting positioning method

Red light, CCD monitor system (optional)

NC system of the work bench

PLC or PC

Stroke of the work bench

200*200mm to 1200*1200mm

Positioning precision

0.02mm

Repeating positioning precision

±0.01mm

Work bench bearing

50kg

Power supply

380V/3-phase/50Hz/60A

Cooling method

Water cooling

www.cncoletech.com

Application and industry:

Automatic laser welding machine is used for stainless steel, gold, silver, alloy, steel, a diamond equivalent material welding or dissimilar material welding is widely used in mobile phone batteries, sensors, medical equipment, craft gifts, watches and clocks, electronic components, sensors, precision machinery, communications and other industries.
