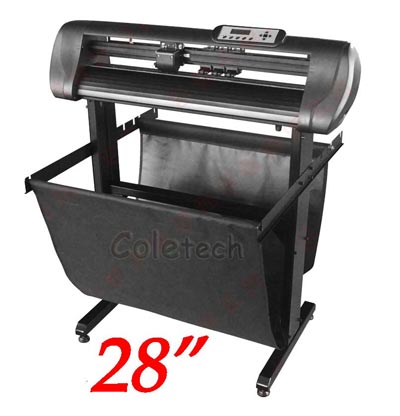

Counting Cutter Plotter

parameter

Model

A-28

A-52

Max. paper feeding width

740mm

1310mm

Max. cutting width

630mm

1200mm

Processor Mode

DSP

Speed

800mm/s

Blade & Blade holder

Roland compatible

Blade pressure

10~500g

Memory

4 MB (Internal)

Mechanical resolution

0.0191mm/step

Repeating precision

0.127mm

Interface

Serial port+ USB+ USB flash stick direct output

Language format

DM/PL/HPGL

Software

Flexi Starter 11 included(for contour cutting );                                 compatible with ARTCUT,cuttermaster,CorelDRAW plug-in and the others for common cutting

Power supply

AC160V~240V 50~60HZ

Driving system

Stepper

Working Environment Temperature

0~35℃

Working Environment Humidity

5%~95% no coagulate water

LED

The LED display with English & Chinese

Professional Floor Stand:

Aluminum Stand with Two Ball Bearing Paper-holding Rollers Included

Weight

22kg

34kg

Packing size:

100*35*43cm

163*35*43cm

www.cncoletech.com

You can use the plotter to do :
