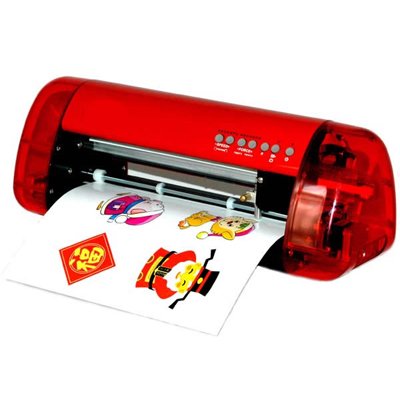

Cutting Plotter

parameter
Item/ Parameter
CL-240 CL-330
ConfigurationGrit-rolling
Drive system Stepping moter
Maximum cutting range190mm x 2000 mm 290 mm x 2000 mm
Effective sheet widthA4 size supportedA3 size supported
Cutting force 60gf to 350gf (7 levels selectable)
Cutting speed10 - 280 mm/s ( 7 levels selectable)
No. of pens mountable 1
Media types Film media 0.1 mm or less in thickness
Kent paper (inkjet or laser paper up to 300g/m2)
Drawing paper,Postcards, Scrapbooking paper; Inkjet photo paper
(Not all types of media can be cut)
Interface USB1.0
Power supply Dedicated adapter, 16V DC (2.5A)
Working environment 5 to 30 °C, 35 to 80% R.H. (Non-condensing)
External dimensions
(W x D x H)
Approx380 x 170 x 165 mm Approx470 x 170 x 165 mm
Carton dimensions Approx450 x 260 x 260mm Approx560 x 260 x 260mm
Gross weight Approx. 5.0kg Approx. 6.0kg
Weight Approx. 4.5kg Approx. 5.5 kg
